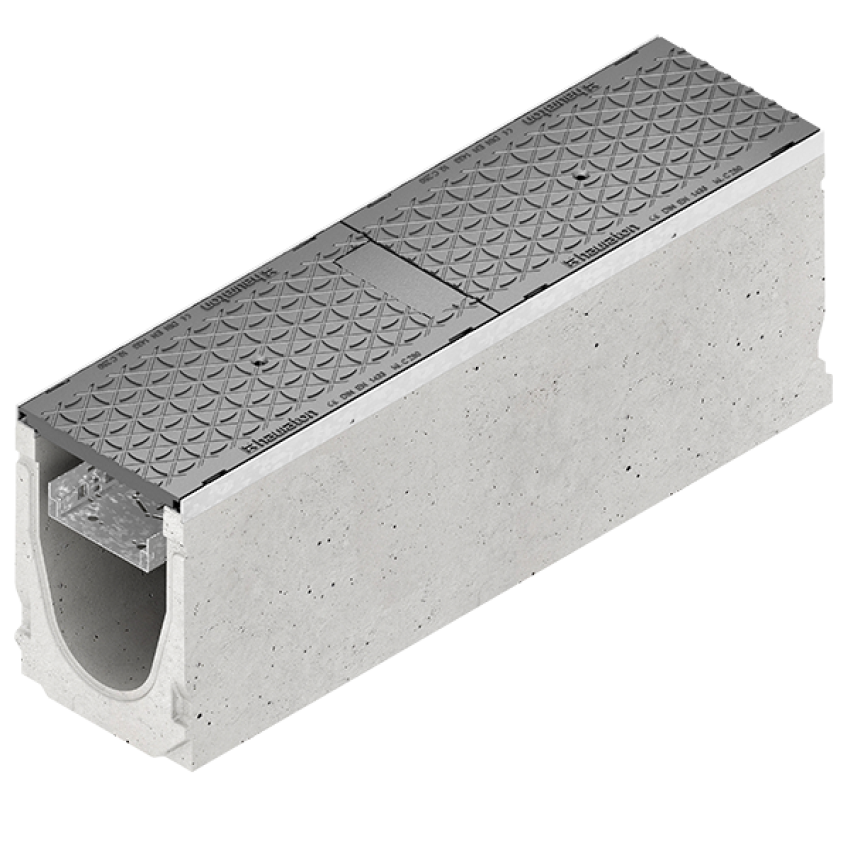

SERVICE CHANNEL | Industry & exhibition
IDEAL FOR: applications for laying cables and lines in the ground which can be easily accessed at all times and the surfaces of which are driven on with heavy wheel loads.
YOUR BENEFITS WITH SERVICE CHANNEL FASERFIX KS
HIGH-PERFORMANCE ANGLE HOUSING & BOLTLESS LOCKING SYSTEM SIDE-LOCK
= Économies de coûts | Qualité assurée
HIGH-PERFORMANCE ANGLE HOUSING & BOLTLESS LOCKING SYSTEM SIDE-LOCK
- 20 mm x 20 mm angle housing and inlaying grating
- extremely stable connection between steel angle housing and concrete channel body
- 10 fixing points for gratings per metre (incl. 2 times with optional locking handle)
- extra protection against lateral movement
- 90 % time savings in fixing the grating with SIDE-LOCK (compared to a conventional fixing)
- replace and insert the grating without any special tool a screwdriver is enough
= Économies de coûts | Qualité assurée
HIGH STABILITY
- maximum lateral stability
- extra thick wall thickness compared to many competitor products, for additional safety in extreme situations
- installationforasphaltedsurfaces up to class E 600, without concrete stretcher
= Performance assurée | Longévité
HIGH-GRADE MATERIAL
- ”Made in Germany”
- maximum stability due to fibre reinforced concrete (polypropylene fibres) with low weight
- strong adhesion on foundation concrete (same coefficient)
- installation without cover possible
- fire resistance class A1 (non-flammable) according to DIN 4102
= Longévité | Qualité assurée
UNIQUE DUCTILE IRON GRATINGS WITH NUMEROUS COMBINATION OPTIONS
= Flexibilité | Performance assurée
UNIQUE DUCTILE IRON GRATINGS WITH NUMEROUS COMBINATION OPTIONS
- high-QualityKTL-coating
- anti-slip feature
- extremely durable
- easy opening and closing of the cover due to boltless locking system SIDE-LOCK
- various covers: closed, with opening for cable outlet
= Flexibilité | Performance assurée
OPTIONAL BLIND COVER FOR DUCTILE IRON GRATING WITH CABLE OPENING
- KTL-coated
- easy opening and closing of the cable inlet and outlet
= Flexibilité
LARGE, CLEAR CROSS-SECTION
- storage space for cables and wires
- optional on two levels (see cable routing system accessories)
= Flexibilité
OPTIONAL CABLE-ROUTING SYSTEM
- for guiding cables and wires in an elevated position (see cable routing system accessories)
- easier laying and accessibility of cables and lines
= Flexibilité

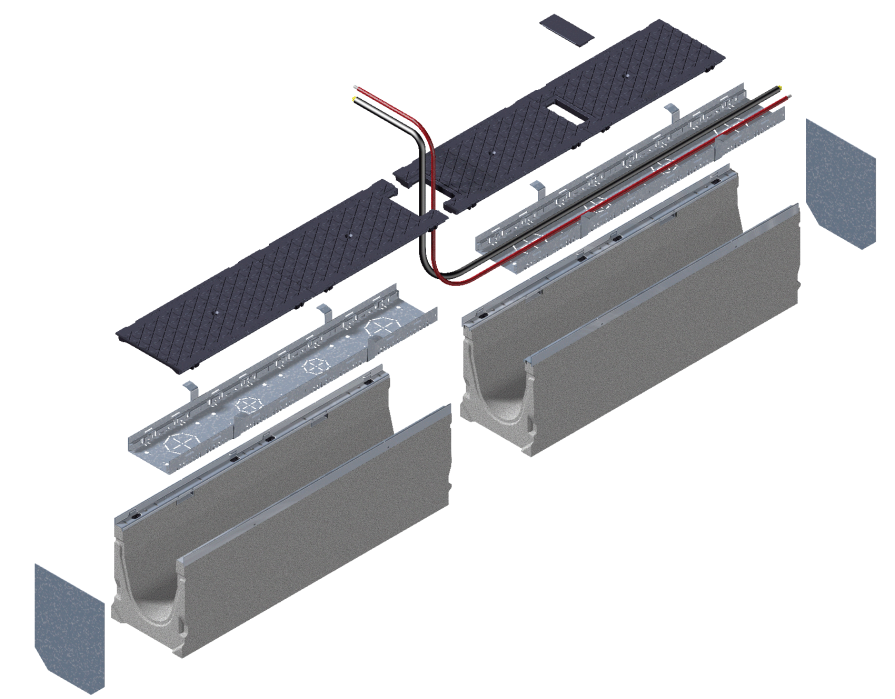

VUE DETAILLÉE DU SYSTÈME
Caniveaux en béton armé de fibres de verre, selon DIN V 19580 / En 1433, avec marquage CE, avec joints de sécurité, cornières en acier avec verrouillage rapide SIDE-LOCK et système d'emboîtements mâle/femelle pour une pose précise
Couvercle fonte à surface antidérapante, traité KTL, charge élevée
Couvercle en fonte ductile avec ouverture pour câbles, surface antidérapante, revêtement KTL, très résistant, peut être combiné avec le couvercle en fonte ductile
Système d'acheminement de câbles galvanisé pour la pose de divers supports et câbles
Recouvrement pour ouverture de câbles pour couvercle en fonte ductile, noir, reêtement KTL
Pièce de fermeture sans sortie, galvanisé
