FASERFIX BIG BLS FASERFIX BIG BLS drainage channel as prefabricated reinforced concrete element
IDEAL FOR ... extreme loads in basically all concrete road surfaces, LAU facilities, aircraft operating areas, port facilities/container terminals, container terminals with „ReachStacker" loads, industrial and logistics areas, tunnel drainage, heavy-duty traffic areas, also in combination with rainwater treatment.
YOUR BENEFITS WITH FASERFIX BIG BLS
PREFABRICATED REINFORCED CONCRETE PART TYPE I ACCORDING TO EN 1433
= Économies de coûts
PREFABRICATED REINFORCED CONCRETE PART TYPE I ACCORDING TO EN 1433
- steel-reinforced concrete stretcher already integrated
- no formwork, reinforcement and in-situ concrete work required
- savings of 2 m sealing joint per channel metre
= Économies de coûts
CHANNEL IN 4 AND 5 M LENGTHS
- high laying performance ∙ 75 % or 80 % fewer channel butt joints (compared to 1 metre overall length)
- in the WHG sector 75 - 80 % fewer maintenance joints
= Économies de coûts | Gain de temps
LOAD BEARING CAPACITY ACCORDING TO INTERNATIONAL PARAMETER
= Longévité | Qualité assurée
LOAD BEARING CAPACITY ACCORDING TO INTERNATIONAL PARAMETER
- LCN Airport categorisation according to ICAO
- up to 100 tons axle load
- navigable for large aircrafts and reachstackers
= Longévité | Qualité assurée
CERTIFICATES AND APPROVALS
- tested statics of channel construction and foundation formation
- no additional external statics required
- with general building authority approval (abZ) through the DIBt (Z-74.4-141)
- with ASR performance test
- practical and realistic installation situations
= Économies de coûts | Qualité assurée
MATERIAL: LIQUID-TIGHT CONCRETE
- liquid-tight concrete subsequent to penetration test
- highest load capacity due to strength class C 60/75
- Exposure class: XF4, XC4, XM2, XD3, XA2
= Performance assurée | Qualité assurée
FACTORY-MADE PE EXPANSION JOINT INSERT
- full-surface absorption of thermal stresses in longitudinal direction
- stop for the PE round cord of the sealing joint
- less consumption of sealing material
= Économies de coûts | Performance assurée
ANGLE HOUSINGS
- 16-fold fixing possibility of the grating per metre (incl. 8-fold with optional screw connection)
- 40 mm inlaying depth
= Qualité assurée

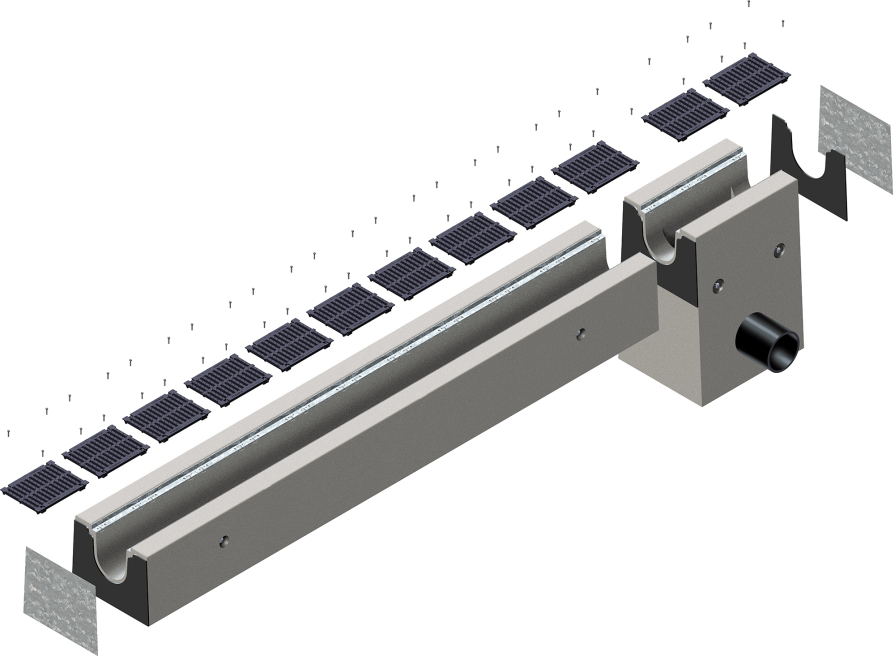

VUE DETAILLÉE DU SYSTÈME
Elément préfabriqué en béton armé, catégorie de résistance C60 / 75 avec cornière en acier ou en acier inoxydable. Possibilité de fixation 16 fois grâce à un mécanisme de verrouillage sans boulon SIDE-LOCK et possibilité de fixation supplémentaire. Longueur 4 ou 5 m.
Grille en fonte EN GJS-500-7, noire, avec verrouillage rapide SIDE-LOCK et verrouillage supplémentaire 8x/ml.
joint d'expansion PE préfabriqué
joint d'expansion PE préfabriqué
Avaloir avec manchon en PE-HD et panier galvanisé.
Obturateur fermé
Obturateur fermé
