DRAINFIX CLEAN filter substrate channel | Rainwater treatment
IDEAL FOR: Surface drainage and rainwater treatment for traffic areas up to Class F 900 for logistics centres, parking areas and industrial facilities
YOUR BENEFITS WITH DRAINFIX CLEAN
HIGH RETENTION CAPACITY
- treatment efficiency secured even in heavy rain events
= Performance assured
EXTREMELY LONG MAINTENANCE INTERVALS
- first inspection after 10 years (depends on local conditions and calculation)
- if maintenance is neccessary only filter cake has to be removed
= Cost savings | Performance assured
HIGH STABILITY
- withstands high traffic loads
- resistanve against temperatur differences
- stable and unbreakable material / channel system
= Quality assured
EXCELLENT TREATMENT EFFECT
- approved by German Institute for Building Technology (DIBt)
- efficiency of treatment:
- Total suspended solids (TSS): 99,5 %
- Total petroleum hydrocarbons (TPHs): 99,9 %
- Zn: 99,8 %
- Cu: 99,8 % - complies with legislative requirements
- treatment efficiency secured even in heavy rain events
= Quality assured | Performance assured
LOW WEIGHT ENSURES EASY HANDLING ON SITE
- much lighter than channels made of polymer / resin concrete
- easy handling in stock and on site
- cost-effective transportation
= Design Flexibility | Cost savings
RENOWNED DEVELOPMENT PARTNERS
- the development of the system was monitored and supported by approved institutions:
Bioplan: The experts for ecologically meaningful and cost saving drainage projects
KIT: Karlsruhe Institute of Technology
AiF - supported project:The AiF supports research and technically certified in many countries
= Quality assured
FLEXIBLE SYSTEM
- adjustable to various requirements and local conditions
- discharge of treated water:
- percolation into groundwater
- open water bodies
- surface water sewer network - tailor-made solutions
= Design Flexibility | Cost savings

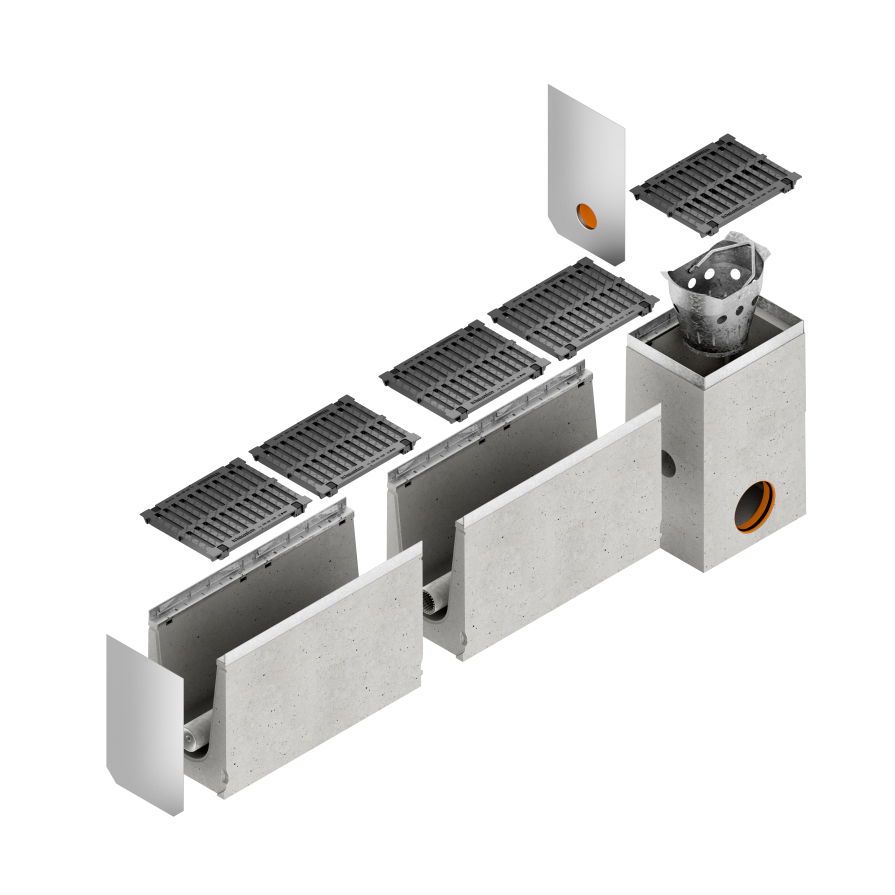

THE SYSTEM IN DETAIL
Afvoergoten FASERFIX SUPER, uit vezelversterkt beton, volgens DIN V 19580 / En 1433, CE-conformiteit, met veiligheidsvoegen, randbescherming in verzinkt staal, inox of gietijzer
Gietijzeren rooster, tot weerstandsklasse F 900 volgens norm EN 1433, verschillende varianten van roosters, KTL coating op aanvraag
carbonhoudend filtersubstraat, goede filterwerking, opslag van zeer kleine deeltjes (0,006 tot 0,060 mm); reinigingscapaciteit overeenkomstig een 30 cm levende bodemzone
Drainagebuis van hoogwaardig kunststof, diverse nominale breedten, met geotextiel omwikkeld
Aantoonbaar gezuiverd water, voor inflitratie geschikt, volgens voorschriften van de DWA-regelgeving voor ondergrondse infiltratiesystemen als veilig beschouwd
