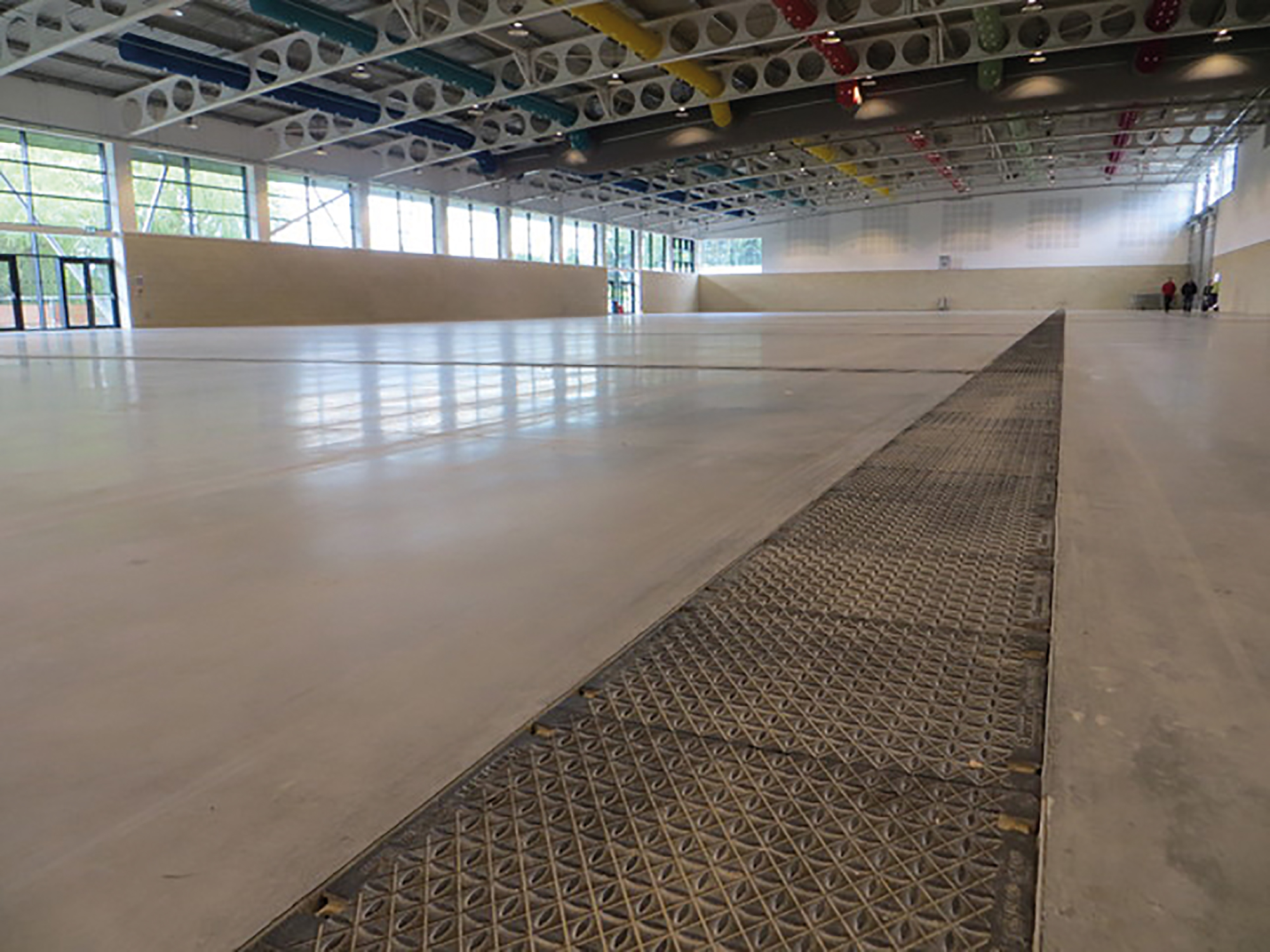

SERVICE CHANNEL | Industry & exhibition

IDEAL FOR: applications for laying cables and lines in the ground which can be easily accessed at all times and the surfaces of which are driven on with heavy wheel loads.
%s



YOUR BENEFITS WITH SERVICE CHANNEL FASERFIX KS

HIGH-PERFORMANCE ANGLE HOUSING & BOLTLESS LOCKING SYSTEM SIDE-LOCK

= Cost savings | Quality assured
SHOW DETAILS

HIGH-PERFORMANCE ANGLE HOUSING & BOLTLESS LOCKING SYSTEM SIDE-LOCK

  • 20 mm x 20 mm angle housing and inlaying grating
  • extremely stable connection between steel angle housing and concrete channel body
  • 10 fixing points for gratings per metre (incl. 2 times with optional locking handle)
  • extra protection against lateral movement
  • 90 % time savings in fixing the grating with SIDE-LOCK (compared to a conventional fixing)
  • replace and insert the grating without any special tool a screwdriver is enough
= Cost savings | Quality assured

HIGH STABILITY

= Performance assured | Longevity
SHOW DETAILS

HIGH STABILITY

  • maximum lateral stability
  • extra thick wall thickness compared to many competitor products, for additional safety in extreme situations
  • installationforasphaltedsurfaces up to class E 600, without concrete stretcher
= Performance assured | Longevity

HIGH-GRADE MATERIAL

= Longevity | Quality assured
SHOW DETAILS

HIGH-GRADE MATERIAL

  • ”Made in Germany”
  • maximum stability due to fibre reinforced concrete (polypropylene fibres) with low weight
  • strong adhesion on foundation concrete (same coefficient)
  • installation without cover possible
  • fire resistance class A1 (non-flammable) according to DIN 4102
= Longevity | Quality assured


UNIQUE DUCTILE IRON GRATINGS WITH NUMEROUS COMBINATION OPTIONS

= Design Flexibility | Performance assured
SHOW DETAILS

UNIQUE DUCTILE IRON GRATINGS WITH NUMEROUS COMBINATION OPTIONS

  • high-QualityKTL-coating
  • anti-slip feature
  • extremely durable
  • easy opening and closing of the cover due to boltless locking system SIDE-LOCK
  • various covers: closed, with opening for cable outlet
= Design Flexibility | Performance assured

OPTIONAL BLIND COVER FOR DUCTILE IRON GRATING WITH CABLE OPENING

= Design Flexibility
SHOW DETAILS

OPTIONAL BLIND COVER FOR DUCTILE IRON GRATING WITH CABLE OPENING

  • KTL-coated
  • easy opening and closing of the cable inlet and outlet
= Design Flexibility

LARGE, CLEAR CROSS-SECTION

= Design Flexibility
SHOW DETAILS

LARGE, CLEAR CROSS-SECTION

  • storage space for cables and wires
  • optional on two levels (see cable routing system accessories)
= Design Flexibility


OPTIONAL CABLE-ROUTING SYSTEM

= Design Flexibility
SHOW DETAILS

OPTIONAL CABLE-ROUTING SYSTEM

  • for guiding cables and wires in an elevated position (see cable routing system accessories)
  • easier laying and accessibility of cables and lines
= Design Flexibility

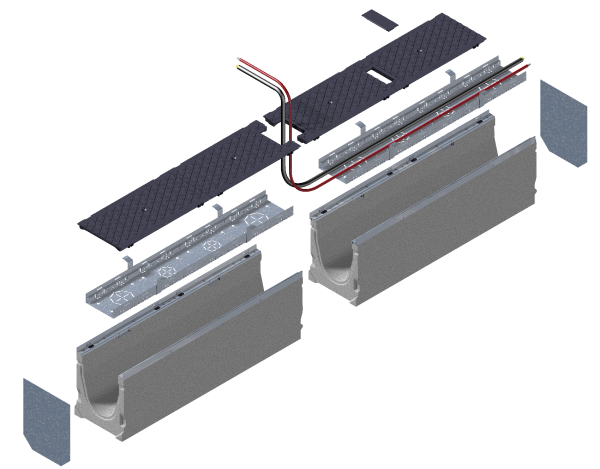

THE SYSTEM IN DETAIL

%s
Afvoergoten uit vezelversterkt beton, volgens DIN V 19580 / En 1433, CE-conformiteit, met veiligheidsvoegen, randbescherming in staal met automatisch vergrendelingssysteem SIDE-LOCK, met man/vrouw verbinding voor een accurate plaatsing
Gietijzeren deksel, met antislip oppervlak, KTL-gecoat, zeer resistent
gietijzeren deksel met opening voor kabels, anti-slip oppervlak, KTL-behandeld, uiterst resistent, kan gecombineerd worden met het gietijzeren deksel.
kabelgeleidingssysteem in galva voor plaatsing van electriciteits- en internetkabels
plaat voor de opening van het gietijzeren deksel, zwart, KTL-behandeld
eindstuk zonder uitloop, in galva


SERVICE CHANNELS Applications
